How to Identify Automotive Electrical Connectors Types and Find Replacements

LEADSIGN-AUTO

·November 1, 2024

·5 min read

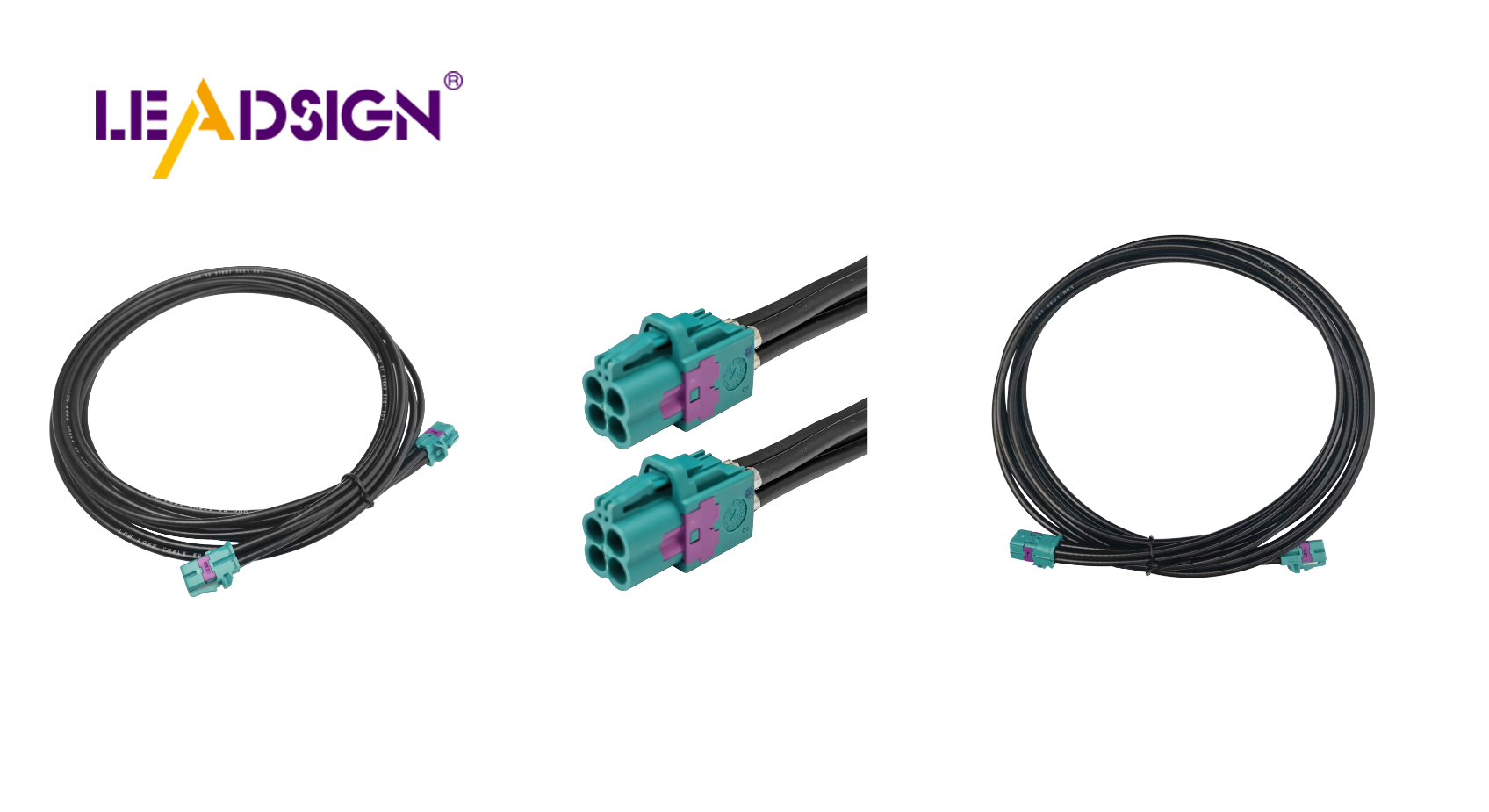

How to Identify Automotive Electrical Connectors Types and Find Replacements — Image Source: LEADSIGN

Understanding automotive electrical connectors types is crucial for your vehicle. These connectors link sensors, control units, and infotainment systems, as well as connect driver-assistance features. A faulty connector could lead to brake failure, which can be hazardous during sudden stops. It's important to inspect them regularly, especially in older cars, to prevent issues. By familiarizing yourself with these connectors, you ensure that your car's components communicate effectively, keeping you safe and your vehicle operating smoothly.

Basics of Identifying Car Electrical Connectors

Knowing car electrical connectors is key for your car's health. They link parts, making sure everything works well, like the engine and radio. Let's learn how to spot these connectors.

Counting Pins

First, count the pins. Each pin is a connection spot. Some have one pin; others have many. More pins mean more complex jobs. Note any empty spots too. This helps match or replace connectors.

Deciphering Shapes and Sizes

Look at the shape and size next. Connectors can be square, round, or unique shapes. Shape shows what it's used for. Round ones might keep water out better. Bigger ones might handle more power or data. Knowing this helps find the right fit.

Reviewing Colors and Materials

Colors and materials give extra hints about connectors. Colors show what they do or voltage levels. Red might mean power; blue could mean data use. Good connectors use strong materials to last long in tough places. Check these to pick the right connector for your car.

Easy Ways to Find Replacement Connectors

Finding the right connector can be tricky. But with some tips, it's easy. Here are ways to help you find what you need.

Checking Makers and Manuals

First, check the car maker's website or manual. These have details about your car's connectors. Look for part numbers or pictures there. This helps you know what you need. If unsure, ask the maker directly. They can guide you to get the right part.

Using Online Pictures and Databases

Use the internet! Search images to compare your connector with others online. Websites like FindPigtails.com are very helpful. They have experts ready to help find your connector. You can also use online databases by pin count, shape, or color. These tools help you find replacements fast.

Looking at Other Choices

Sometimes, exact matches aren't there. Then try other choices. You might find a similar one from another brand or model. Companies like ECFT offer great services and can help you find a good replacement. Call them at 610-389-4312 for help. Always make sure any new connector fits your car's needs for safety.

By using these ways, you'll easily find the right connectors for your car. Remember, finding the correct part keeps your car running well and safe.

Tips for Buying Good Connectors

When shopping for car connectors, quality is key. You need connectors that last and work well. Here are some tips to help you choosing wisely.

Checking Connector Quality

First, look at the connector's quality. Good connectors use strong materials that can handle tough conditions. Find ones made from sturdy plastics or metals. These materials make them last longer and work better.

Think about the connector's design too. A good design fits tightly and stays put. It should not shake loose on bumpy roads. You don't want a connector that easily disconnects.

Look at the details too. Good connectors have clear specs like impedance and frequency range. These details show if they fit your car's needs.

Reliable Suppliers and Brands

Picking the right supplier or brand is important. Fernando, an expert in cars, says trusted suppliers matter a lot. He says good brands make connectors that save time and work well in cars.

Start by looking up good brands. Brands with a good history often have better products. Check reviews from other buyers to see if they trust the brand.

Find suppliers with many choices too. A supplier with lots of options helps you find what fits your car best. They might also give advice to help you buy right.

In short, focus on quality and trust when buying connectors. By checking materials, design, and specs, you get a great product. And by picking trusted suppliers and brands, you know your connectors will work well.

To finish, remember these tips for car electrical connectors. First, count the pins. Look at shapes and sizes. Check colors and materials too. These steps help you find the right connector. When getting new ones, pick good quality and make sure they fit well. Good connectors keep your car working safely. Use manuals and online tools to find replacements. This keeps your car running well and safe. Always choose connectors that match your car's needs for top performance.
