Fakra Connector Types Compared to SMB Connectors for Automotive Use

LEADSIGN-AUTO

·December 4, 2024

·10 min read

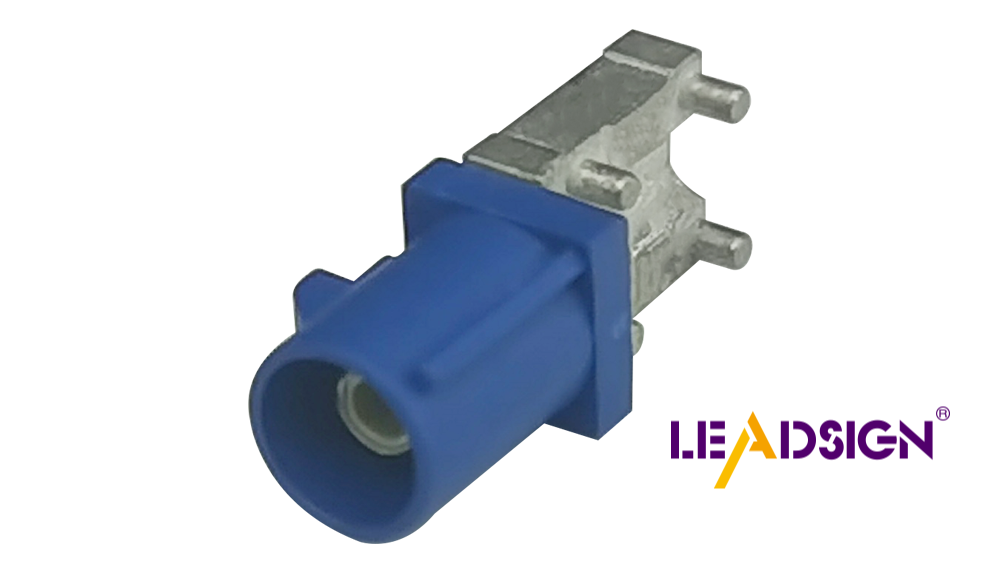

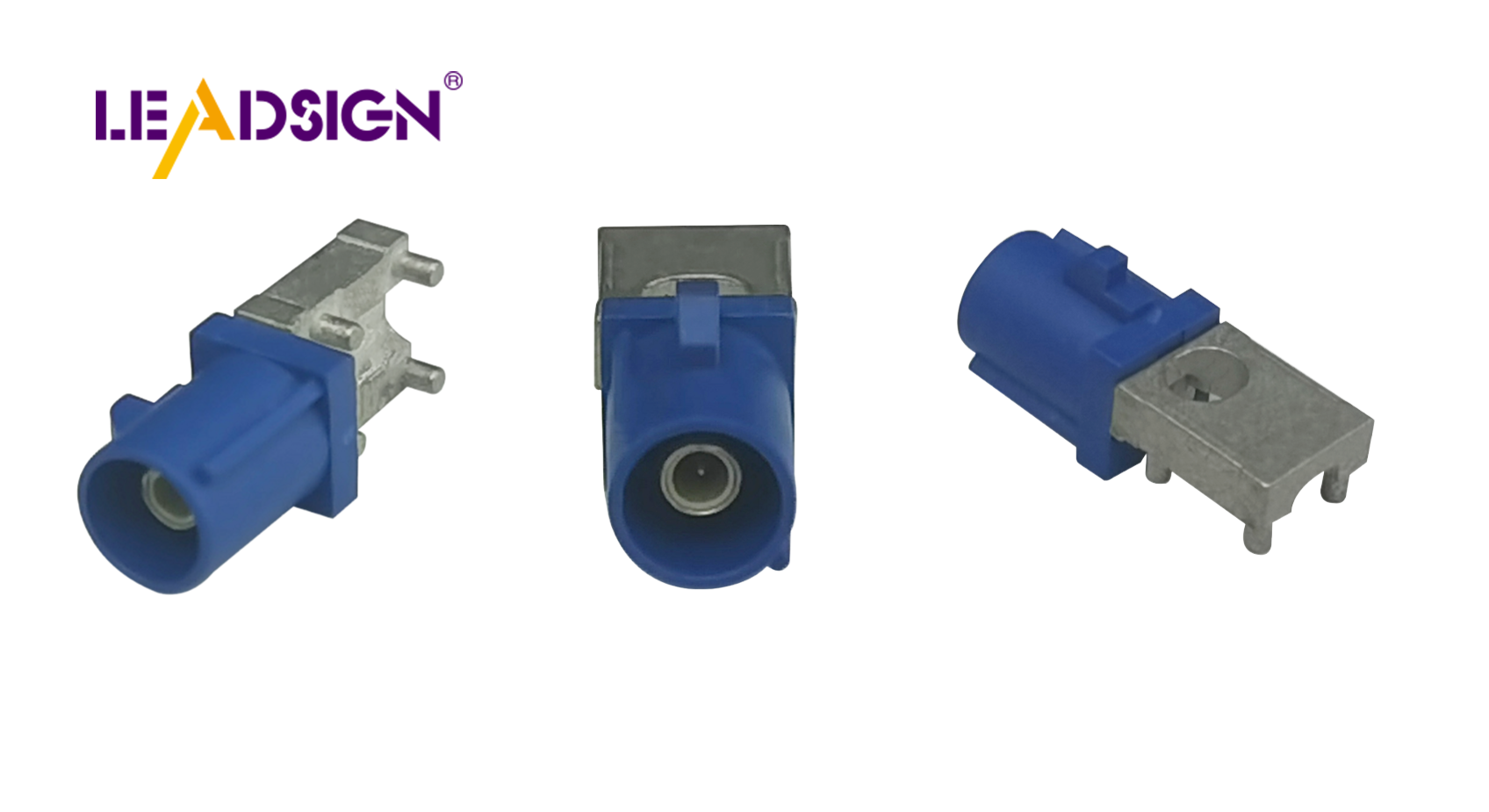

Fakra Connector Types Compared to SMB Connectors for Automotive Use — Image Source: LEADSIGN

Fakra connector types and SMB connectors are important for car communication systems. Fakra connectors are specifically designed for vehicles and perform well in tough conditions. They assist with GPS, Bluetooth, and remote controls to enhance safety and communication. While SMB connectors can be used in various applications, they lack the specialized features of Fakra connectors. Choosing the right connector depends on your needs, such as signal type or environment. Fakra connectors are robust and lock securely, making them ideal for high-frequency automotive use.

Key Takeaways

Fakra connectors are specifically designed for automotive use, providing robust performance in harsh conditions, making them ideal for GPS, Bluetooth, and communication systems.
The unique locking mechanism and color-coded housings of Fakra connectors prevent accidental disconnections and ensure correct installations, enhancing safety and reliability.
SMB connectors, while versatile and easy to install, lack the durability and weatherproofing required for automotive applications, making them less suitable for high-stress environments.
When choosing connectors for automotive systems, prioritize Fakra connectors for their high-frequency capabilities (up to 6 GHz) and secure design, especially in critical applications like navigation and driver assistance.
For less demanding applications, SMB connectors can be a cost-effective choice, particularly in temporary setups or where space is limited, but they should not be used in harsh automotive environments.
Understanding the specific needs of your automotive system—such as frequency requirements and environmental conditions—will guide you in selecting the right connector type.
Always consider the long-term reliability and performance of connectors in automotive applications, as investing in quality components like Fakra connectors can lead to better overall system functionality.

Overview of Fakra Connectors

What Are Fakra Connectors?

Fakra connectors are special parts made for car systems. They help send strong signals for GPS, radios, and Bluetooth. These connectors have male and female ends that lock tightly together. This prevents them from coming apart by accident. They are tough and work well in rough conditions, making them great for cars. Fakra connectors also have colored covers to match industry rules. The colors make it easy to identify and avoid wrong connections during setup.

Key Features of Fakra Connectors

Fakra connectors are strong and work very well in cars. They meet strict car industry needs, staying secure and lasting long. Some important features include:

High-Frequency Capability: Works up to 6 GHz for fast data.
Durability: Keeps out water, dust, and signal problems.
Secure Locking Mechanism: Stops accidental unplugging while driving.
Color-Coded Housings: Helps match parts correctly during setup.
Temperature Resistance: Works in extreme heat or cold (-40°C to +105°C).
Versatility: Comes in different shapes like straight or waterproof.

These features make them the best choice for car systems needing strong signals.

Common Fakra Connector Types

Different types of Fakra connectors fit specific car uses. Each type is made for a certain job to ensure it works well. Here are some common ones:

Fakra A: For AM/FM radio antennas.
Fakra C: Best for GPS navigation systems.
Fakra D: Used with mobile phones and Bluetooth.
Fakra Z: A general type used for many purposes.

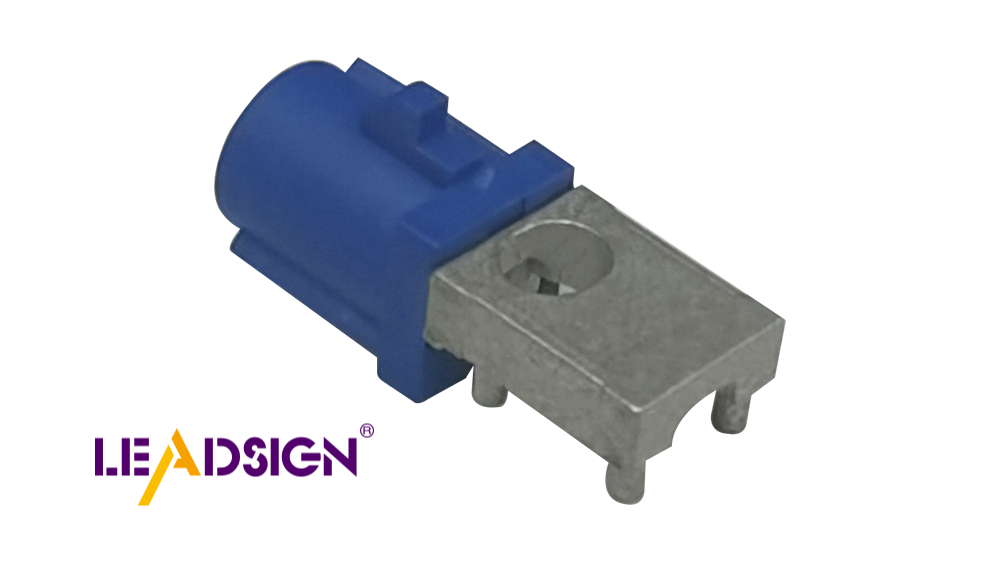

Companies also create custom designs for special needs. These can include cable, PCB, or panel versions of the connectors. Their flexibility makes them useful in many car systems like entertainment or driver-assistance tools (ADAS).

Overview of SMB Connectors

What Are SMB Connectors?

SMB connectors are small parts used to send high-frequency signals. They are popular in telecom and radio systems because they are lightweight. These connectors use a snap-on design for quick and easy setup. They handle signal ranges from DC to 4 GHz, sometimes up to 10 GHz.

Built following MIL-C-39012 rules, SMB connectors work well in many places. Their design matches MIL-STD-348 and IEC60169-10 standards, making them reliable for precise tasks. People like them for being simple to use and delivering strong performance.

Key Features of SMB Connectors

SMB connectors have features that make them useful in different setups:

Small Size: Fits easily into tight spaces.
Snap-On Design: Quick connections without needing extra tools.
Wide Frequency Range: Works from DC to 4 GHz or more.
Impedance Choices: Comes in 50-ohm or 75-ohm options.
Tough Build: Handles tough conditions using military-grade materials.
Flexible Use: Good for telecom and data transfer systems.

These qualities make SMB connectors great for jobs needing strong signals and easy installation.

Limitations of SMB Connectors in Automotive Use

Even though SMB connectors are good, they have limits for cars. Their small size makes them less strong for rough car conditions. Here’s why:

Missing Car-Specific Features: No color codes or locks like Fakra connectors have.
Less Durable Design: Snap-on style may not handle car vibrations well.
Weak Protection Against Weather: Not sealed enough for extreme temperatures or weather.
Not Fully Compatible with Cars: May not meet all car industry rules.

For cars, stronger options like Fakra connectors are better choices. Still, SMB connectors work fine where conditions aren’t too harsh or outside the auto industry.

Key Differences Between Fakra and SMB Connectors

Design Differences

Fakra connectors are strong and built to stay secure. They have a special lock that keeps them connected, even in vibrating cars. Their colored covers make setup easy and prevent mistakes. These fakra connector types are bigger and tougher, perfect for car systems.

In contrast, the smb connector is small and light. Its snap-on design makes it quick to connect but less steady in shaky places. Because of their size, smb connectors fit tight spaces but aren't tough enough for cars.

Functional Differences

For high-speed tasks, fakra connectors work best. They handle frequencies from 3 GHz to 6 GHz well. This makes them great for GPS, music systems, and car communication tools. Their 50-ohm impedance ensures smooth signals.

Meanwhile, smb connectors are better for lower-frequency jobs between 0 GHz and 4 GHz. They can sometimes go up to 10 GHz but aren't as reliable at high speeds in cars. With a 75-ohm impedance, they suit telecom or data transfer jobs outside vehicles.

Compatibility and Standards

Fakra connectors meet strict car industry rules. Their color codes and locking system match vehicle needs perfectly. This makes them dependable for auto makers.

On the other hand, the smb connector follows general standards like MIL-C-39012. These rules make them useful in many areas but not ideal for cars. They lack weatherproofing needed for extreme heat or cold in vehicles.

To sum up, choosing between fakra connectors, smb, or others depends on your task's needs. For cars needing strong designs and fast signals, go with fakra connectors. For smaller setups without much stress, pick smb connectors instead.

Fakra Connectors in Cars

Fakra connectors are very important for modern cars. They help send signals reliably in different car systems. These connectors are made to handle tough car conditions, making them useful. For example, they work in in-car navigation systems, giving accurate GPS signals for directions. Their strong and waterproof design is perfect for outdoor antennas, even in bad weather.

In car entertainment systems, fakra connectors send high-quality sound and video data. They support features like satellite radio, TV, and Bluetooth for a better driving experience. Fakra connectors also help with driver assistance tools like parking sensors by sending precise signals. Their locking system keeps connections stable, even with constant car vibrations.

Fakra connectors are also used in car communication systems to connect electronic parts smoothly. They work well for mobile calls, RF Bluetooth, or keyless entry systems. Because they fit specific needs, many car makers prefer fakra connectors.

SMB Connectors in Cars

SMB connectors can be used in some car setups but are less specialized. You might find them where small size and easy setup matter most. For instance, they work well with temporary diagnostic tools or extra devices needing quick connections. Their snap-on design makes them fast to install.

But SMB connectors aren’t great for tough car environments. They don’t have weatherproofing or locks to handle vibrations or extreme temperatures well. While good for general RF jobs, they may not meet strict standards needed for advanced systems like in-car navigation or driver assistance tools.

Still, SMB connectors are affordable and flexible options outside main car systems. They’re often chosen for basic communication setups or simple entertainment devices where demands aren’t as high.

Fakra connectors are the best for cars. They are strong, lock securely, and have color codes to prevent mistakes. These connectors handle fast data well, which is important for modern vehicles. SMB connectors work great in telecom and wireless setups but aren’t tough enough for cars. When picking connectors, think about weather and fit. For car systems, Fakra connectors always work better and last longer.

FAQ

Can Fakra and SMB connectors work together?

No, Fakra connectors and SMB connectors cannot connect directly. Fakra ones are bigger, stronger, and made for cars. They have special locks and colored covers to ensure proper use. SMB connectors are smaller but lack these car-specific features. Their size, shape, and signal differences make them incompatible.

What is a Fakra SMB connector?

A Fakra SMB connector combines parts of both types. It’s used in cars for communication systems like antennas or media tools. This connector mixes the small size of SMB with the strength and locking system of Fakra.

What are Fakra connectors?

Fakra connectors are special RF parts made for cars. They work with coaxial cables in systems like GPS or Bluetooth. These tough connectors lock securely and have color codes to prevent mistakes during setup.

Why choose Fakra connectors?

Fakra connectors have unique features that stand out:

Easy Setup: Quick to plug in.
Color Codes: Avoids wrong connections.
Strong Build: Handles tough car conditions.
Secure Locks: Stops accidental disconnections.

These qualities make them great for reliable car systems.

Can you replace SMB with Fakra?

Sometimes yes, but not always. If your system needs strong locks or durability, use Fakra instead of SMB. However, their sizes and designs differ, so check your system first.

Why are Fakra better for cars?

Fakra works well in rough conditions like heat or vibrations. Their secure locks keep connections stable while driving. The color-coded design makes installation simple without errors.

Are Fakra compatible with SMA?

No, they aren’t directly compatible because they’re designed differently. While adapters exist, compatibility depends on your specific needs.

Where else can you use Fakra?

Besides cars, industries like aerospace also use them where strong signals matter most.

How do they handle high frequencies?

Fakra supports signals up to 6 GHz smoothly due to its 50-ohm impedance. This makes it perfect for fast data tasks like GPS or satellite radio.

How to pick between them?

Think about what you need:

Use Fakra connectors if durability is key.
Choose SMB when space-saving matters more.
Check frequency needs—Fakras go up to 6 GHz; SMBs usually less.
For easy setup in cars, pick color-coded Fakras over plain SMBs.
